Drawing¶

DrawArea provides a 2D drawing surface with paths, fills, strokes, gradients, transforms, and text.

Basic shapes¶

The on_draw callback receives a drawing context and the area dimensions:

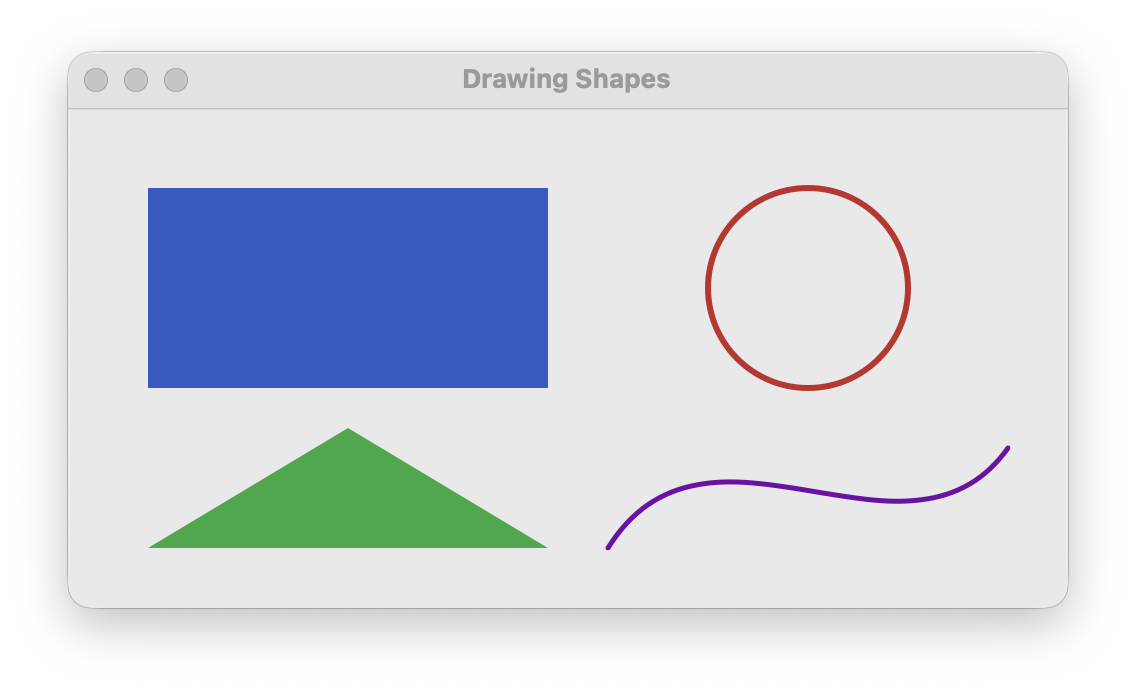

"""Drawing shapes — rectangles, circles, triangles, and strokes."""

import math
import libui
from libui.declarative import App, Window, VBox, DrawArea, stretchy


def on_draw(ctx, area_w, area_h, clip_x, clip_y, clip_w, clip_h):
    # Filled rectangle
    path = libui.DrawPath()
    path.add_rectangle(20, 20, 200, 100)
    path.end()

    blue = libui.DrawBrush()
    blue.r, blue.g, blue.b, blue.a = 0.2, 0.4, 0.8, 1.0
    ctx.fill(path, blue)

    # Stroked circle
    circle = libui.DrawPath()
    circle.new_figure_with_arc(350, 70, 50, 0, 2 * math.pi, False)
    circle.end()

    red = libui.DrawBrush()
    red.r, red.g, red.b, red.a = 0.8, 0.2, 0.2, 1.0

    stroke = libui.DrawStrokeParams()
    stroke.thickness = 3.0
    stroke.cap = libui.LineCap.ROUND
    ctx.stroke(circle, red, stroke)

    # Filled triangle
    tri = libui.DrawPath()
    tri.new_figure(20, 200)
    tri.line_to(120, 140)
    tri.line_to(220, 200)
    tri.close_figure()
    tri.end()

    green = libui.DrawBrush()
    green.r, green.g, green.b, green.a = 0.2, 0.7, 0.3, 1.0
    ctx.fill(tri, green)

    # Bezier curve
    bezier = libui.DrawPath()
    bezier.new_figure(250, 200)
    bezier.bezier_to(300, 120, 400, 220, 450, 150)
    bezier.end()

    purple = libui.DrawBrush()
    purple.r, purple.g, purple.b, purple.a = 0.5, 0.0, 0.7, 1.0

    sp = libui.DrawStrokeParams()
    sp.thickness = 2.5
    sp.cap = libui.LineCap.ROUND
    ctx.stroke(bezier, purple, sp)


async def main():
    app = App()

    app.build(
        window=Window(
            "Drawing Shapes",
            500,
            250,
            child=VBox(stretchy(DrawArea(on_draw=on_draw))),
        )
    )

    app.show()
    await app.wait()


libui.run(main())

The drawing workflow is:

Create a DrawPath and add geometry (rectangles, arcs, lines)
Call path.end() to close the path
Create a DrawBrush with color
Call ctx.fill(path, brush) or ctx.stroke(path, brush, stroke_params)

Path methods¶

Method	Description
`add_rectangle(x, y, w, h)`	Add a rectangle
`new_figure(x, y)`	Start a new sub-path at a point
`new_figure_with_arc(cx, cy, r, start, sweep, neg)`	Start with an arc
`line_to(x, y)`	Draw a line to a point
`bezier_to(c1x, c1y, c2x, c2y, ex, ey)`	Cubic bezier curve
`close_figure()`	Close the current sub-path
`end()`	Finalize the path (required before use)

Stroke parameters¶

DrawStrokeParams controls line appearance:

sp = libui.DrawStrokeParams()
sp.thickness = 3.0
sp.cap = libui.LineCap.ROUND    # FLAT, ROUND, SQUARE
sp.join = libui.LineJoin.ROUND  # MITER, ROUND, BEVEL
sp.set_dashes([10.0, 5.0])     # dash pattern

Gradients¶

Both linear and radial gradients are supported:

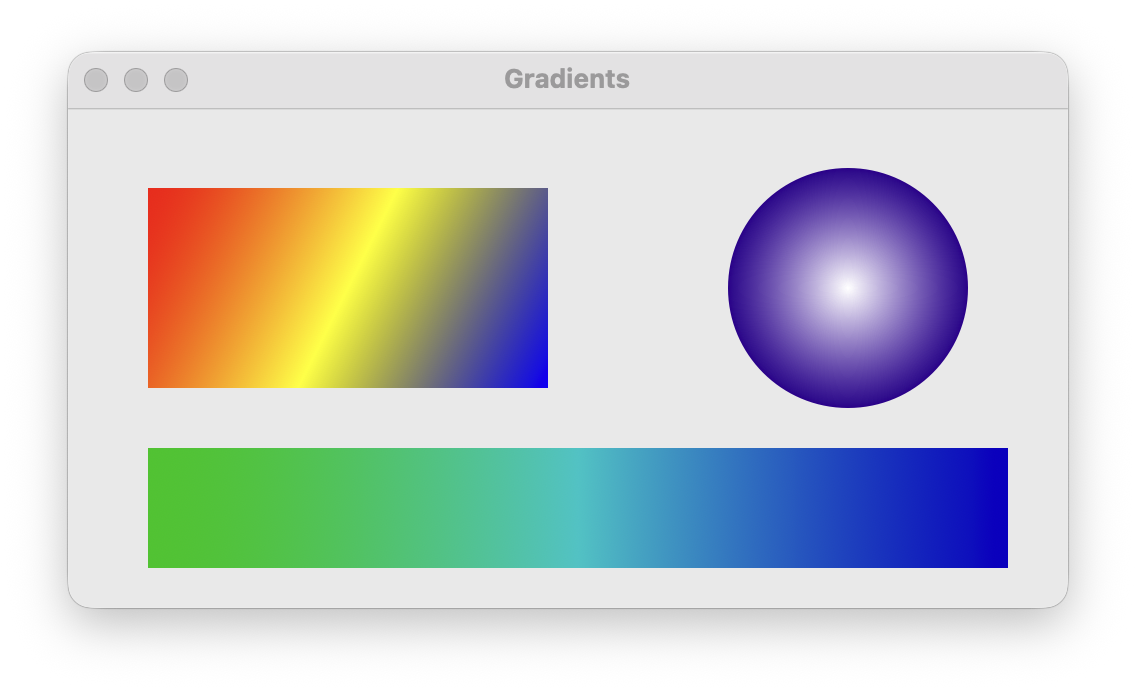

"""Drawing gradients — linear and radial gradient fills."""

import math
import libui
from libui.declarative import App, Window, VBox, DrawArea, stretchy


def on_draw(ctx, area_w, area_h, clip_x, clip_y, clip_w, clip_h):
    # Linear gradient
    rect = libui.DrawPath()
    rect.add_rectangle(20, 20, 200, 100)
    rect.end()

    lin = libui.DrawBrush()
    lin.type = libui.BrushType.LINEAR_GRADIENT
    lin.x0, lin.y0 = 20, 20
    lin.x1, lin.y1 = 220, 120
    lin.set_stops(
        [
            (0.0, 1.0, 0.0, 0.0, 1.0),  # red
            (0.5, 1.0, 1.0, 0.0, 1.0),  # yellow
            (1.0, 0.0, 0.0, 1.0, 1.0),  # blue
        ]
    )
    ctx.fill(rect, lin)

    # Radial gradient
    circle = libui.DrawPath()
    circle.new_figure_with_arc(370, 70, 60, 0, 2 * math.pi, False)
    circle.end()

    rad = libui.DrawBrush()
    rad.type = libui.BrushType.RADIAL_GRADIENT
    rad.x0, rad.y0 = 370, 70  # center
    rad.x1, rad.y1 = 370, 70  # focus (same as center)
    rad.outer_radius = 60
    rad.set_stops(
        [
            (0.0, 1.0, 1.0, 1.0, 1.0),  # white center
            (1.0, 0.2, 0.0, 0.6, 1.0),  # purple edge
        ]
    )
    ctx.fill(circle, rad)

    # Another linear gradient — vertical
    rect2 = libui.DrawPath()
    rect2.add_rectangle(20, 150, 430, 60)
    rect2.end()

    lin2 = libui.DrawBrush()
    lin2.type = libui.BrushType.LINEAR_GRADIENT
    lin2.x0, lin2.y0 = 20, 150
    lin2.x1, lin2.y1 = 450, 150
    lin2.set_stops(
        [
            (0.0, 0.0, 0.8, 0.0, 1.0),  # green
            (0.5, 0.0, 0.8, 0.8, 1.0),  # teal
            (1.0, 0.0, 0.0, 0.8, 1.0),  # blue
        ]
    )
    ctx.fill(rect2, lin2)


async def main():
    app = App()

    app.build(
        window=Window(
            "Gradients",
            500,
            250,
            child=VBox(stretchy(DrawArea(on_draw=on_draw))),
        )
    )

    app.show()
    await app.wait()


libui.run(main())

Gradient stops are tuples of (position, r, g, b, a) where position is 0.0 to 1.0.

Styled text¶

AttributedString supports rich text with attributes for weight, color, style, and more:

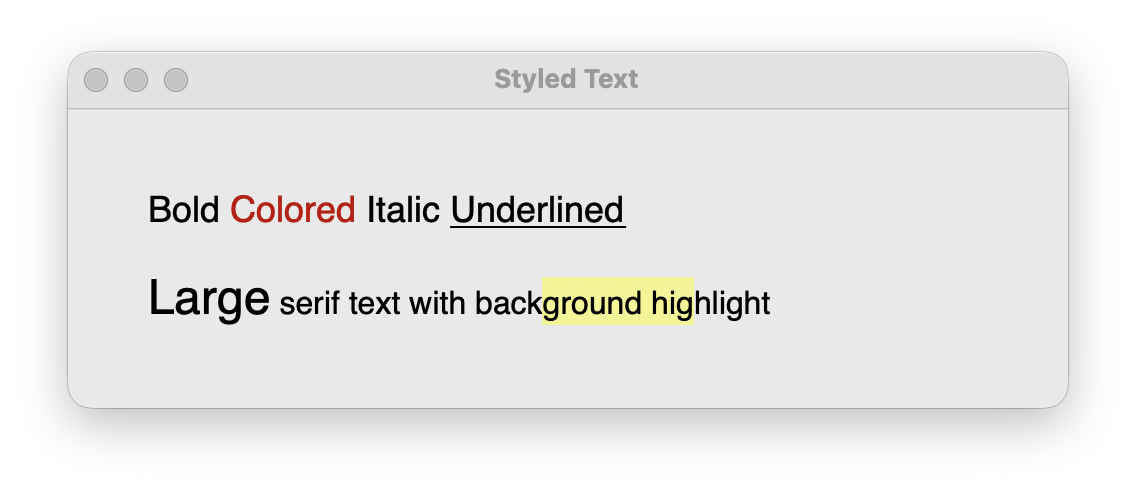

"""Drawing styled text — attributed strings with formatting."""

import libui
from libui.declarative import App, Window, VBox, DrawArea, stretchy


def on_draw(ctx, area_w, area_h, clip_x, clip_y, clip_w, clip_h):
    # Create an attributed string with various styles
    text = "Bold Colored Italic Underlined"
    astr = libui.AttributedString(text)

    # Bold (0-4)
    astr.set_attribute(libui.weight_attribute(libui.TextWeight.BOLD), 0, 4)

    # Red color (5-12)
    astr.set_attribute(libui.color_attribute(0.8, 0.0, 0.0, 1.0), 5, 12)

    # Italic (13-19)
    astr.set_attribute(libui.italic_attribute(libui.TextItalic.ITALIC), 13, 19)

    # Underline (20-30)
    astr.set_attribute(libui.underline_attribute(libui.Underline.SINGLE), 20, 30)

    font = {"family": "sans-serif", "size": 18.0}
    layout = libui.DrawTextLayout(astr, font, area_w - 40)
    ctx.text(layout, 20, 20)

    # Second line with more attributes
    text2 = "Large serif text with background highlight"
    astr2 = libui.AttributedString(text2)
    astr2.set_attribute(libui.family_attribute("serif"), 0, len(text2))
    astr2.set_attribute(libui.size_attribute(24.0), 0, 5)
    astr2.set_attribute(libui.background_attribute(1.0, 1.0, 0.0, 0.5), 26, 36)

    font2 = {"family": "serif", "size": 16.0}
    layout2 = libui.DrawTextLayout(astr2, font2, area_w - 40)
    ctx.text(layout2, 20, 60)


async def main():
    app = App()

    app.build(
        window=Window(
            "Styled Text",
            500,
            150,
            child=VBox(stretchy(DrawArea(on_draw=on_draw))),
        )
    )

    app.show()
    await app.wait()


libui.run(main())

Text attributes¶

Function	Description
`weight_attribute(weight)`	Font weight (e.g., `TextWeight.BOLD`)
`italic_attribute(style)`	Italic style (e.g., `TextItalic.ITALIC`)
`color_attribute(r, g, b, a)`	Text color
`background_attribute(r, g, b, a)`	Background highlight
`underline_attribute(style)`	Underline (e.g., `Underline.SINGLE`)
`family_attribute(name)`	Font family
`size_attribute(size)`	Font size in points

Transforms¶

Use DrawMatrix for translations, rotations, and scaling:

matrix = libui.DrawMatrix()
matrix.set_identity()
matrix.rotate(center_x, center_y, degrees)
ctx.save()
ctx.transform(matrix)
# ... draw rotated content ...
ctx.restore()

Mouse events¶

DrawArea supports mouse interaction through callbacks:

DrawArea(
    on_draw=on_draw,
    on_mouse_event=on_mouse,       # click, drag, move
    on_mouse_crossed=on_crossed,   # enter/leave
)

The mouse event dict contains: x, y, area_width, area_height, down, up, count, modifiers, held.

Call widget.queue_redraw_all() to trigger a repaint after changes.

ScrollingDrawArea¶

For content larger than the visible area, use ScrollingDrawArea:

ScrollingDrawArea(
    on_draw=on_draw,
    width=2000,   # virtual canvas size
    height=2000,
)
